Kit cadre Chiru Kunlun+ fourche carbone
Disponibilité : Rupture de stockÀ partir de 2 390,00€
Description
- Cadre titane 3Al/2.5V, Grade 9, Butted & Cold Formed
- Compatible fourche rigide CEC Carbon, Base mount, Crown to Axle : 372 mm
- BendOut Seat-stay design/CNC drop-out
- Tapered Head tube : 1 1/8′-1 1/2” , semi-integrated 56×44 mm
- Diamètre tige de selle : 27.2 mm
- Dérailleur avant: à braser tirage bas.
- empattement arrière : 142x12mm thru axle.
- Diamètre disque arrière : BaseMount 160 mm.
- Boitier pédalier : BSA 68 mm, 52x36T max clearance
- Pneus compatible 700c x 34c
- Routage interne, inserts trois porte bidons + garde boue et porte bagages. Top tube bag mounting point.
- Size : XS, S, M, L, XL; Weight: 1.6kg en taille M
- Compatible pédalier 50x34T

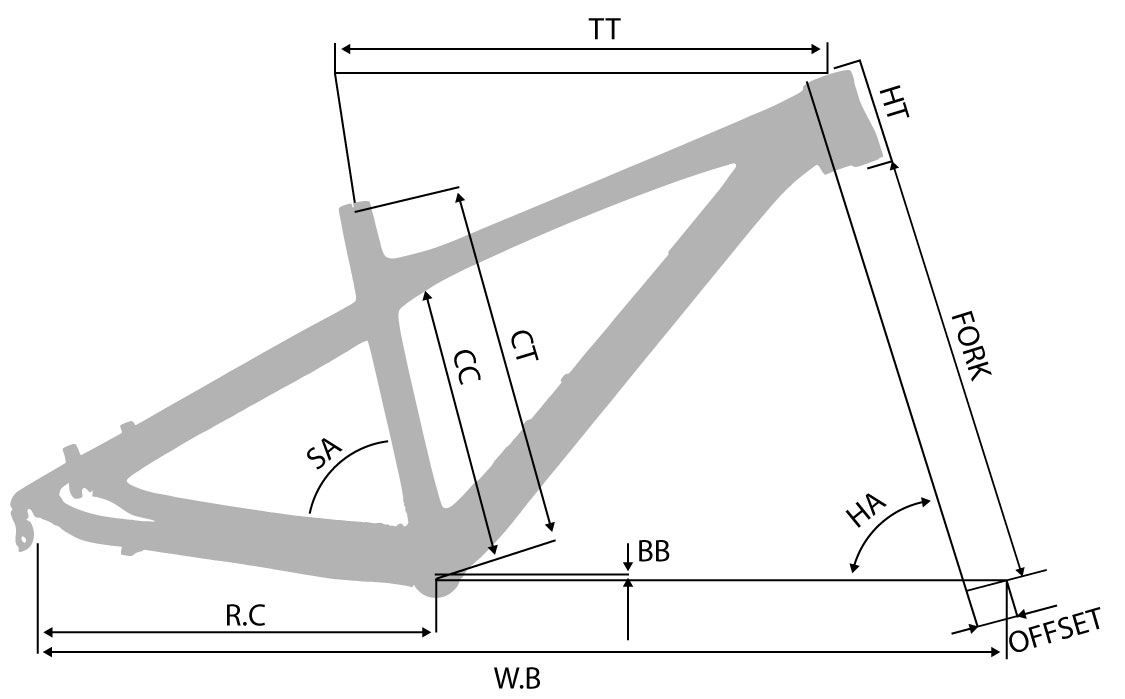

| KUNLUN |
XS |
S |
M |
L |
XL |
|
unit |
| Effective top tube |
515 |
535 |
550 |
565 |
580 |
|
mm |
| Seat Tube Length |
455 |
500 |
525 |
565 |
580 |
|
mm |
| Chain Stay Length |
423 |
426 |
428 |
430 |
433 |
|
mm |
| Reach |
375 |
378 |
381 |
386 |
392 |
|
mm |
| Wheel Base |
997 |
1011 |
1017 |
1026 |
1036 |
|
mm |
| BB Drop |
72 |
71 |
70 |
69 |
68 |
|
mm |
| Head Tube Length |
120 |
145 |
165 |
185 |
205 |
|
mm |
| Seat Tube Angle |
75 |
74.2 |
73.4 |
73 |
72.75 |
|
deg |
| Head Tube Angle |
70.75 |
71 |
71.5 |
72 |
72.5 |
|
deg |
| RIDER SIZE |
155-165 |
162-172 |
170-180 |
178-188 |
186-198 |
|
(cm) |
